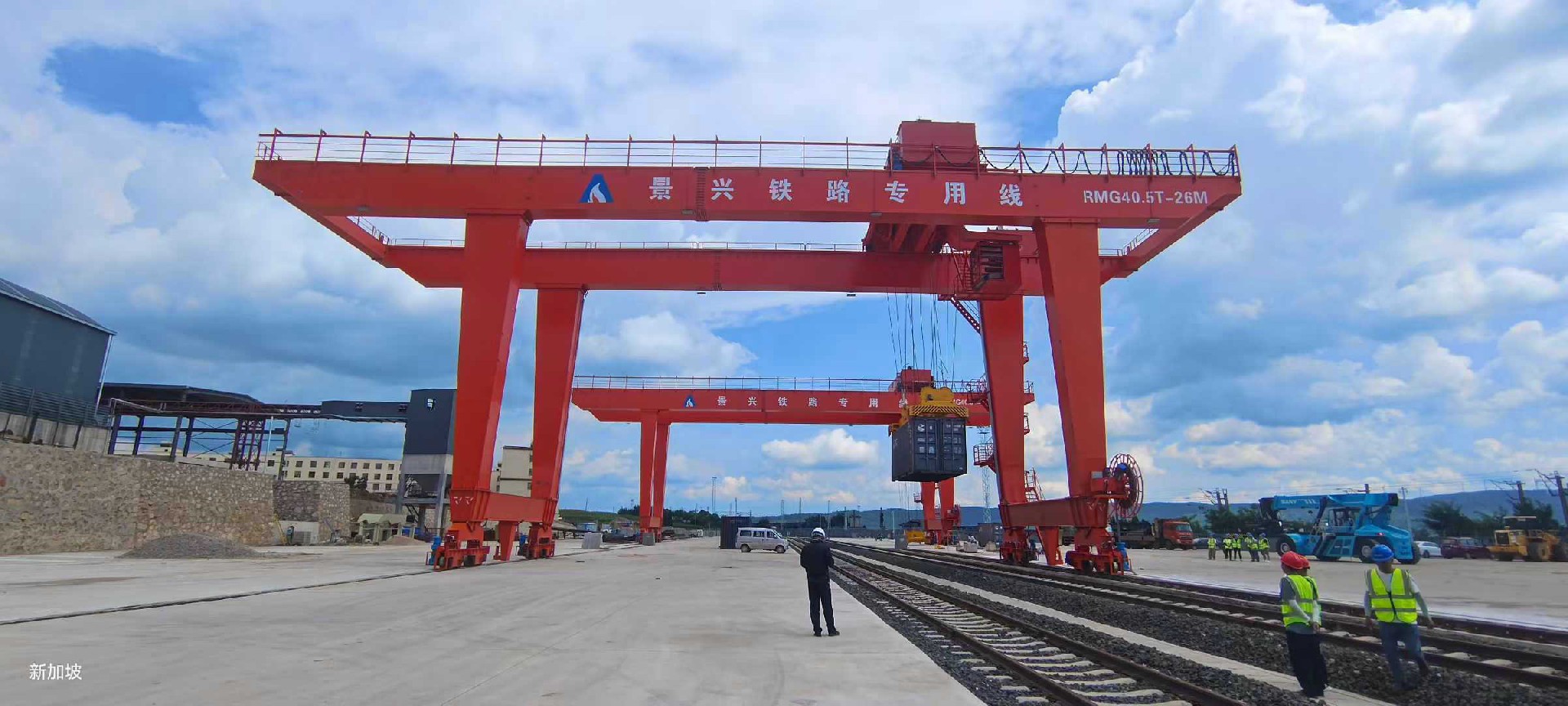

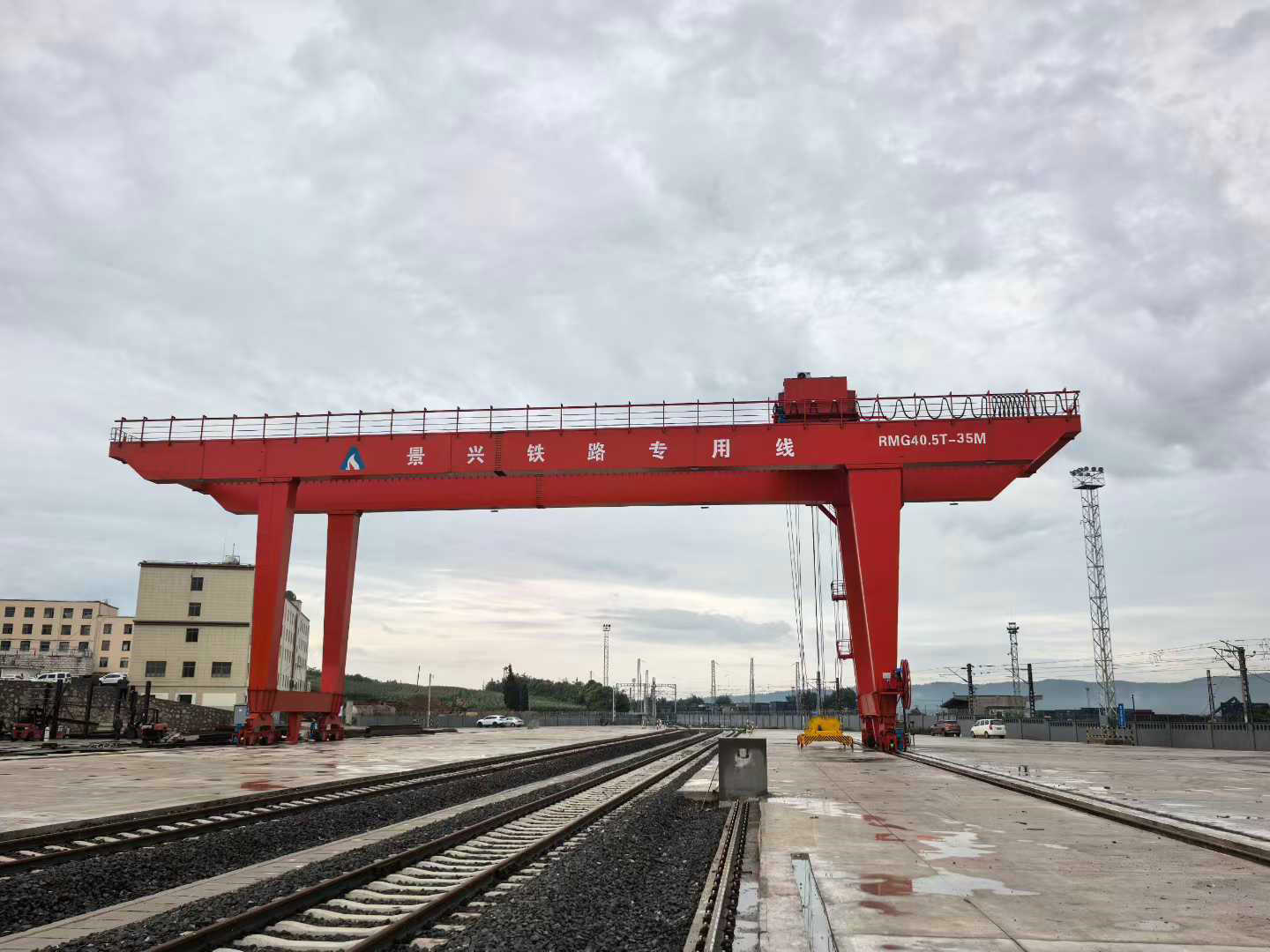

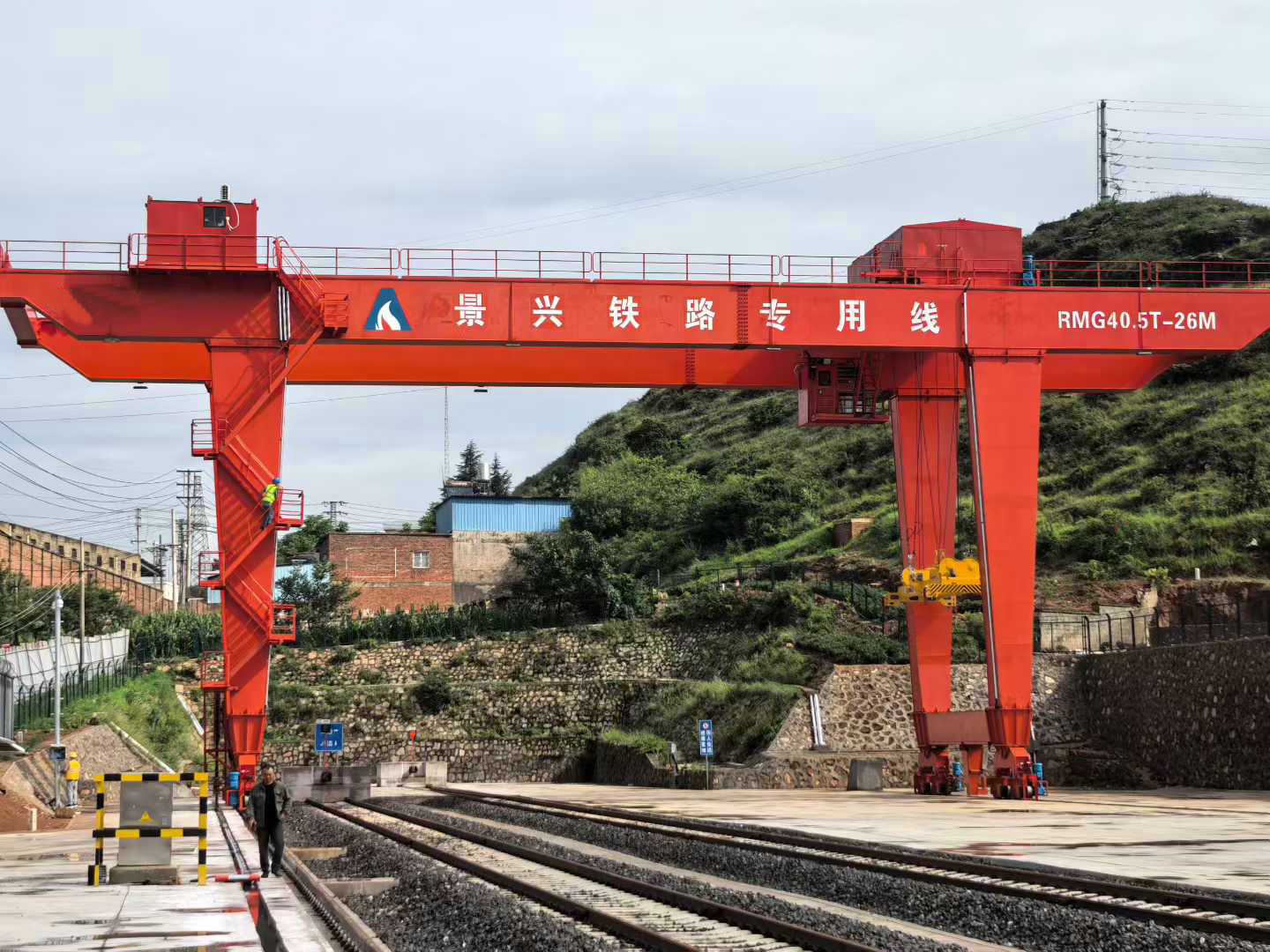

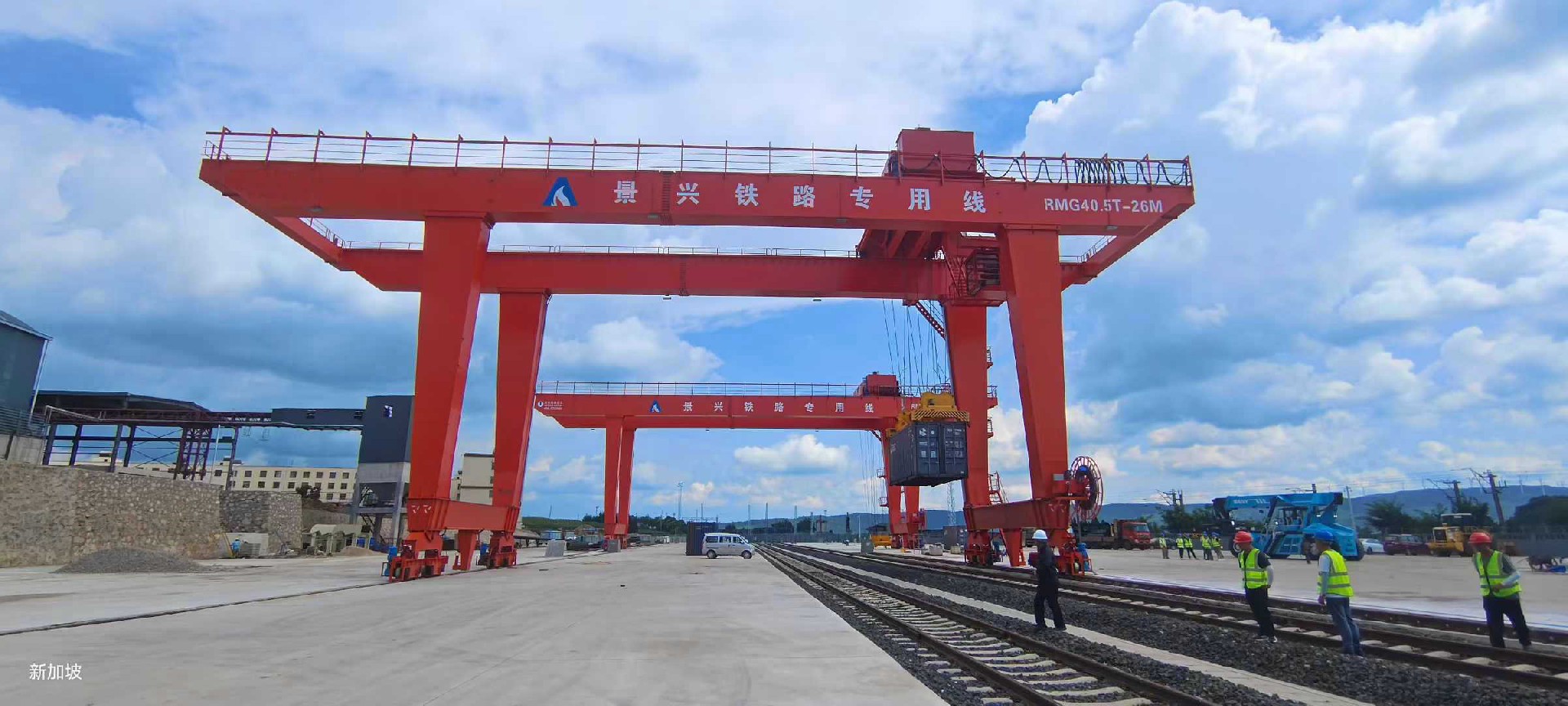

Nucrane RMG45ton-46m-15.5m（KAF250） Rail Mounted Container Gantry Crane (also known as portal cranes or gantry cranes) are heavy machinery used for loading and unloading containers at ports, docks and storage yards. Their metal structure is in the form of a "door" shape, and the legs are supported on ground tracks, facilitating efficient handling of containers.

Structure and Working Principle

‌Structure Composition‌: Mainly consists of the frame (including the main beam, end beam and outer suspension beam), outriggers, trolley running mechanism, lifting trolley and electrical system. Among them, the main beam spans the track, and the two sides' outriggers can be equipped with tires or fixed tracks to achieve flexible movement.

‌Working Principle‌: Through the trolley sliding laterally on the main beam, combined with the wire rope hoisting system, containers are lifted; the trolley running mechanism drives the entire machine to move along the track, covering large areas of the storage yard.

Core Features and Advantages

 ‌ Efficient Loading and Unloading‌: Highly maneuverable (tire type can turn flexibly), fast processing speed (lifting speed up to 35-52 meters per minute), capable of quickly completing single or double container loading and unloading operations.

‌Large Load Capacity‌: Rated lifting capacity is generally 40.5-65 tons (special models can reach 900 tons), suitable for different-sized containers. High site utilization rate: Wide span range (up to 60 meters), large working area, suitable for outdoor freight yards, docks and other open areas.

l Rated capacity:45t(under spreader)

l Lifting height:15.5m(under spreader)

l Span:46m

l Cantilever: 10.5 m

l Main beam total length:46m+10.5m+10.5m=67m

l Spreader:20/40/45 ft telescopic, rotation, balancing, signals, snow protection, interlocks, sensors.

l Crane design type- U-shaped legs

l Lifting speed:≥ 1.8–18 m/min (VFD), double speed unloaded

l Trolley traveling speed:≥ 6.3–63 m/min (VFD)

l Crane traveling speed:≥ 6.2–62 m/min (VFD)

l Crane operating mode (working group) – ISO A7;

l Lifting mechanism: M7

l Trolley mechanism:M7

l Crane mechanism: M7

l Maximum wheel load：crane is 330 kN;trolley is 230

l Distance between centres of long-travel wheel sets of the crane:16.5m

l Total power of the gantry crane:415 kW

l Working temperature range: -40℃～+40℃

l Relative humidity: not higher than 80% at+25℃

l Maximum working wind speed: not less than 25m/s

l Seismic grade: not less than grade 6

l Main steel: Q355E low temperature resistant structural steel

l Rail model: QU80

l Power supply: 3P AC 380V/50Hz

l Rails(model QU80):540m

l Cables:270m

l Cable drum:including,with tension control system and guide

l Protective systems:LMI, recorder, ACS, locks, buffers, alarm, Limiters, sensors, ACS, skew prevention, non-contact rangefinders, girder protection, anemometer, anti-theft system;Load limiters;Height limiters;Lower limit devices;Limiters for cranes and running mechanisms;Shock absorbers;Stop devices;Over-speed protection devices;Interlocking protection devices;Protective devices for moving parts;Maintenance cages or platforms;Combined force and torque limiters for each mechanism

l Video surveillance (8 cameras + monitor)

l Paint: ≥ 120 microns, GOST, 5-year life
